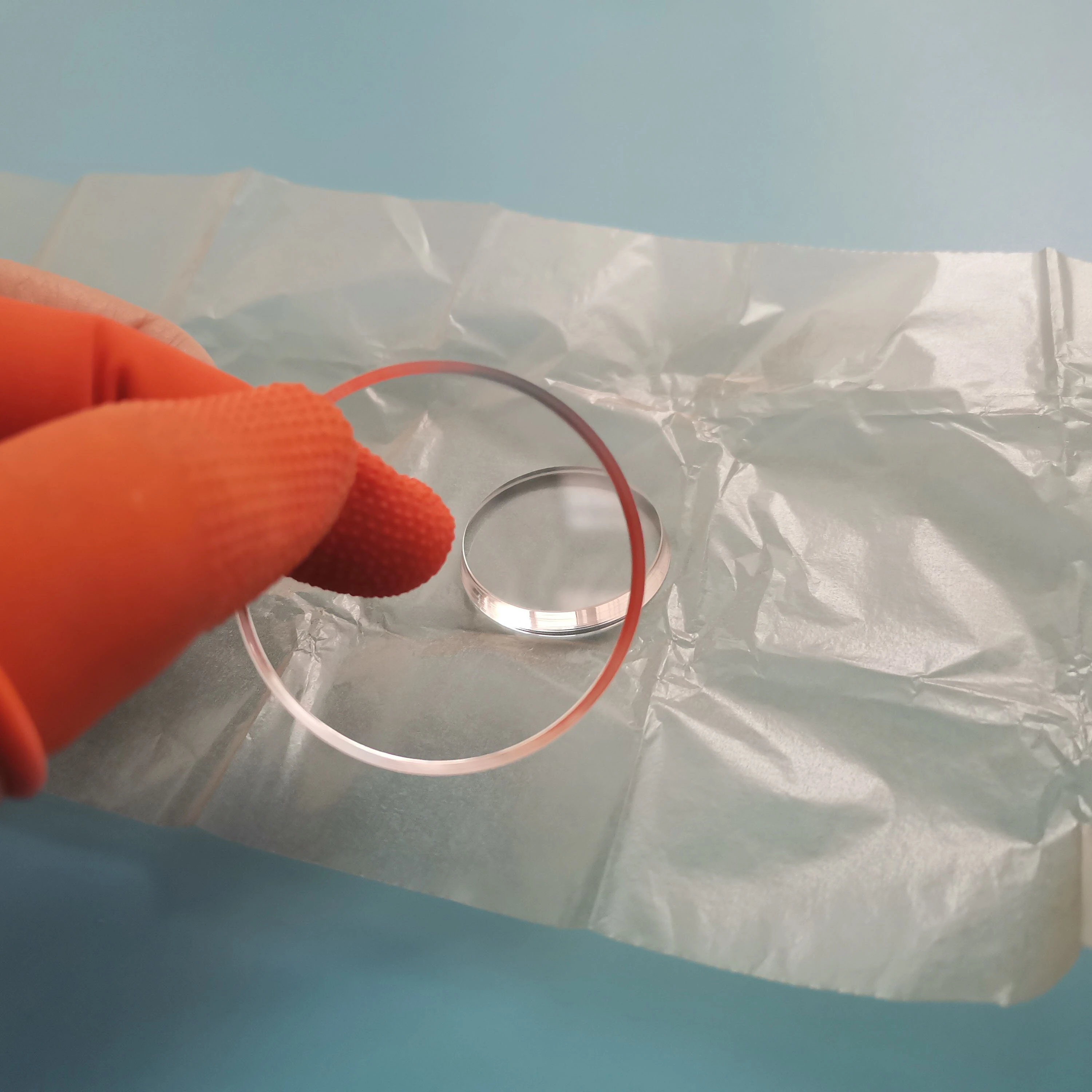

Uncoated IR CaF2/LiF/MgF2/BaF2 Window
CaF2 window
CaF2 (Calcium Fluoride) has good performance at optical and thermo-mechanical properties,it can be used for optical Windows,spherical lens, prisms and cylinders within a wide range from 130nm to 9μm. It has optical properties of isotropy, low absorption and low refractive index, which made CaF2 gain the unique advantages in the application.
LiF Window
LiF(lithium fluoride crystal)is an optical infrared cystal which transmit from 0.10 to 7µm.
MgF2 window
MgF2 (Magesium Flouride transmits over a extremely wide range of wavelengths .windows, lenses ,and prisms made of MgF2 can be used over the entire range of wavelengths from 0.12μm(vacuum ultraviolet ) to 8.0μm (infrared). High quality synthetic VUV grade MgF2 is quite expensive.
BaF2 Window
BaF2's transmittance at 200nm is relatively low (0.60), but at 500nm it goes up to 0.96-0.97 and stays at that level until 9μm,then it starts falling off (0.85 for 10μm and 0.42 for 12μm). The refractive index is about 1.46 from 700nm to 5μm. Barium Flouride is used as a preopacifying agent and in enamel and glazing frits production. It is also used in metallurgy, as molten bath for refining aluminum.
| Material | CaF2/LiF/MgF2/BaF2 other optical glass |
| Dimension | 2-300mm |
| Dimension Tolerance | +0.1, -0.1 mm |
| Thickness Tolerance | +0.1, -0.1 mm |
| Parallelism | <5 arcmin |
| Surface Flatness | L/4 |
| Clear Aperture | > 95% |
| Surface Quality | 60-40 scratch and dig |
| Protective Bevel | 0.25 mm x 45° |
| Coating | as customer's requirements |
Other Items
Factory information
Changchun Yutai Optics Co.,Ltd. is a manufacturer with ISO9001 certification. We are specialized in high-performance optical components include lens, mirrors, filters, windows and prisms which are specified by customers. YutaI's items are widely used in imaging, defense, medical, laser and industry market.
As a fast-growing supplier in optics, Yutai Optics has quickly established itself as a leader in optical components with advanced technology and quality control ability as Yutai aims to provide professional service and good quality items to meet customers' request. Yutai has already established long-term cooperative relation with many powerful companies all over the world.
Our Advantage
Yutai Optics has a professional sales team with excellent service. Sells team provide full service from inquiry,production,inspection,delivery and after sale guarantee. "Customer first" is sells teams goal. So Yutai always try the best to meet each customer's request.
Yutai Optics processes precision optical components with many experienced engineers and advanced machines which are the important elements for the high quality items.Our advanced production machines list:Ring polishing machine,Single axis machine,Two axis machine,Four axis machine,Centering edging machine,Mechanical milling machine, Spectrograph Grinding machine,Nanotech.250upl,Talysurfi120.
Yutai Optics has a double-check inspection for optical components.The quality control department test every component carefully and provide testing report for each order. Our testing machine includes ZYGO,Stereo interferometer, Horizontal interferometer.
Process for most optics
Material-cutting-rounding-milling-grinding-polishing-edging-cleaning-coating-gluing-edging-blacking-accembly-packing-shipping
Packaging & Shipping
1 Package Detail: A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.
2 Delivery Detail: Within 30 days.(Also depand on the quantity)
Payment:
2 Delivery Detail: Within 30 days.(Also depand on the quantity)
